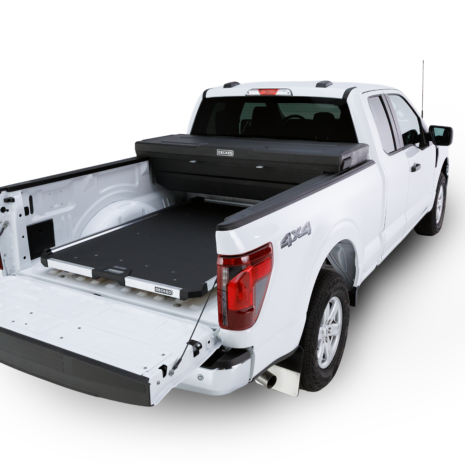

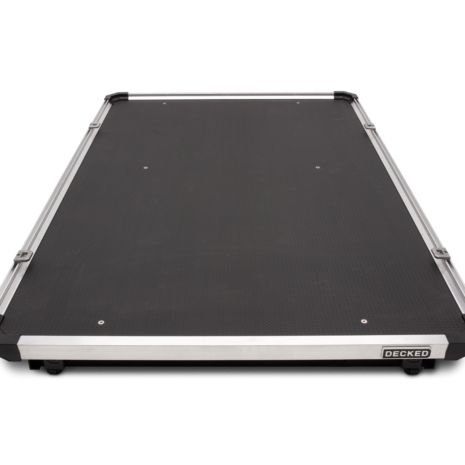

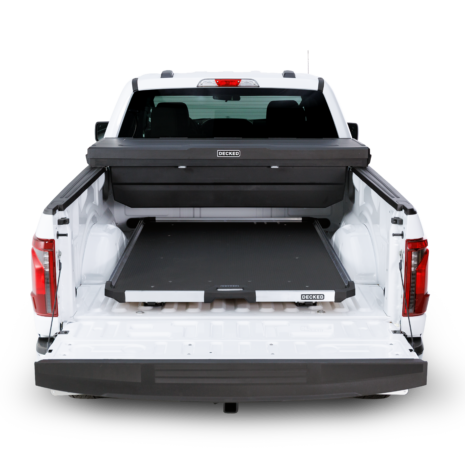

CARGO GLIDE 1500/75% for medium-short trucks

Product Description:

It glides easily and is firm enough to carry your load with CargoGlide For your trucks, it allows you to pull loads smoothly with one hand. Available in various options. 75% or 100% extensionWith a load capacity of up to 1,500 lbs.

Designed for heavy-duty use:
Constructed from robust, industrial-grade materials: American steel and aluminum, ¾” marine-grade wood, and a shock-resistant plastic top cover. Backed by a lifetime warranty.

Smooth and easy to use:
One-handed operation, with high-quality sliding bearings and an automatic stop handle, makes pulling heavy loads easy and safe without the risk of the load slipping.

Easy to install:
It comes CargoGlide Pre-assembled, and if you know how to use a drill, you can assemble it in just 30-45 minutes.

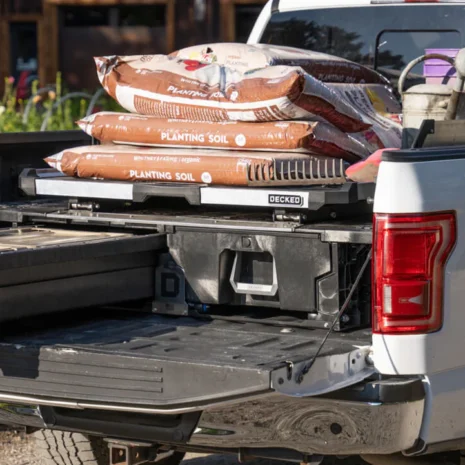

Ideal for compatibility with DECKED drawer systems or the new DECKED toolboxThis provides easier and safer truck storage.

---

Technical specifications (TECH SPECS):

• the weight: 128 lbs
• Maximum load: 1,500 pounds
• Dimensions: 48.7 × 62.7 × 5.2 inches
• Dimensions of the tray: 45.3 × 59.3 × 3.9 inches
• Extension: 75%

Materials:

• American-made powder-coated steel frame
• Artificial wood 0.75”
• Impact-resistant plastic top cover
• Aluminum side walls

Bearings and sliding support:

• 4 Cam Follower Bearings
• 4 roller needle bearings
• 2 polished steel cylinders
• 14 Double Mid-Frame Bearing
• 12 Side bearings, mid-frame
• 2 cam follower loaders at the tail end

Installation notes:

• Some rear doors may restrict movement if they are not flat when opened.
• It must be used CargoGlide mounting brackets When installed on a DECKED drawer system

Compatibility:

• Compatible with: DECKED Drawer System (with required brackets)
• Incompatible with: Bedrug/Plastic Bed Liners, Service Body, 5th Wheel/Gooseneck, GMC Carbon Pro Bed, DECKED Tool Box, Rambox, All Old Drawer Systems
